Manual J is the cornerstone of residential HVAC design in the United States, providing a standardized methodology for calculating building heating and cooling loads. Developed by the Air Conditioning Contractors of America, Manual J establishes a rigorous, physics-based framework that allows engineers and designers to move beyond rule-of-thumb sizing toward precise, data-driven system design. From an engineering standpoint, it is fundamentally a heat transfer and energy balance problem, integrating conduction, convection, radiation, and latent heat effects into a coherent load model.
At its core, a Manual J study quantifies the rate of heat gain and heat loss for a structure under design conditions. These conditions are typically based on climatic data for a specific location, including outdoor dry-bulb temperature, wet-bulb temperature, solar radiation, and humidity profiles. For a location such as Dallas–Fort Worth, the cooling design condition might assume outdoor temperatures exceeding 100°F with significant solar gains, while winter heating conditions are comparatively moderate. The selection of appropriate design conditions is critical, as it directly influences equipment sizing and system performance.

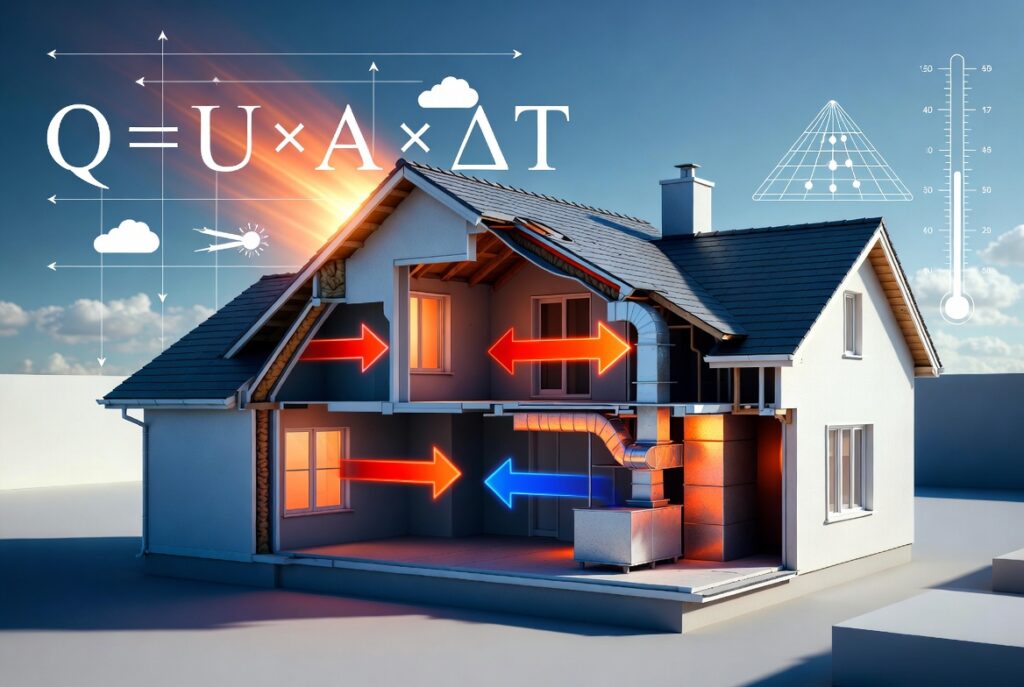

The building envelope is the primary interface between indoor and outdoor environments, and its thermal characteristics dominate the load calculation. Engineers evaluate conductive heat transfer through walls, roofs, floors, windows, and doors using the fundamental relationship:
Q = U × A × ΔT
where Q is the heat transfer rate, U is the overall heat transfer coefficient, A is the surface area, and ΔT is the temperature differential across the assembly. Accurate determination of U-values requires knowledge of material properties, insulation levels, framing effects, and construction quality. Thermal bridging, often overlooked in simplified analyses, can significantly increase effective heat transfer and is implicitly addressed in Manual J through adjusted assembly values.
Fenestration introduces additional complexity due to solar heat gain. Windows are characterized not only by U-value but also by Solar Heat Gain Coefficient (SHGC), which governs the fraction of incident solar radiation transmitted into the building. Manual J incorporates directional solar load factors, accounting for orientation (north, south, east, west), shading devices, and time-of-day solar angles. In high solar load climates, glazing can dominate the cooling load, making window selection and shading strategies critical design variables.
Infiltration and ventilation represent another major component of the load calculation. Uncontrolled air leakage introduces both sensible and latent loads, as outdoor air must be conditioned to indoor setpoints. Manual J provides methodologies to estimate infiltration rates based on building tightness, construction quality, and pressure differentials. From an engineering perspective, this is a mass flow problem coupled with psychrometrics: incoming air carries enthalpy that must be removed (cooling) or added (heating). In humid climates, latent loads associated with moisture removal can be a substantial fraction of total cooling demand.
Internal gains further contribute to the load profile. Occupants, lighting, and appliances generate both sensible and latent heat. Manual J assigns standardized values—for example, a typical occupant contributes roughly 230 BTU/hr sensible and 200 BTU/hr latent under residential conditions. While these values may seem minor individually, their cumulative effect can be significant, particularly in tightly constructed homes with low envelope loads.
A key engineering distinction in Manual J is the separation of sensible and latent loads. Sensible loads affect dry-bulb temperature, while latent loads affect moisture content. HVAC equipment must be selected to handle both simultaneously, which introduces performance considerations related to coil temperature, airflow rates, and equipment sensible heat ratio (SHR). Oversizing equipment—a common outcome of rule-of-thumb design—can lead to short cycling, inadequate dehumidification, and reduced occupant comfort, even if peak sensible loads are met.
Manual J results serve as the foundation for subsequent design steps, notably duct design (Manual D) and equipment selection (Manual S). The calculated peak loads define the required system capacity, but engineers must also consider part-load performance, equipment efficiency curves, and control strategies. Variable-speed compressors and fans, increasingly common in modern systems, allow for better alignment with dynamic load profiles, improving both comfort and energy efficiency.
From a systems engineering perspective, Manual J represents a shift toward integrated building design. It forces coordination between architectural decisions (orientation, glazing, insulation), mechanical systems, and occupant behavior. For example, improving envelope performance through higher insulation or better windows reduces peak loads, which in turn allows for smaller HVAC equipment, reduced duct sizes, and lower lifecycle costs. This cascading effect highlights the importance of early-stage load analysis in the design process.
In practice, the accuracy of a Manual J study depends heavily on input quality. Field verification of insulation levels, window specifications, and air leakage characteristics is essential. Garbage-in, garbage-out applies: even a rigorous methodology cannot compensate for poor assumptions. For this reason, experienced engineers often supplement Manual J calculations with field measurements, blower door tests, and iterative calibration.
Ultimately, Manual J is not merely a compliance exercise but a critical engineering tool. It transforms HVAC design from an art based on experience into a science grounded in thermodynamics and heat transfer. When properly applied, it yields systems that are right-sized, energy-efficient, and capable of maintaining both thermal comfort and indoor air quality under a wide range of operating conditions.
